Softening is a process where Calcium and Magnesium ions are exchanged for Sodium ions. Calcium and Magnesium ions associated with Alkalinity contribute for scale formation. These ions are also called as Total hardness. The strong acid Cation ion exchange resin in Sodium form is used for softening the water. When the resin is exhausted , it is regenerated with brine solution ( Sodium Chloride ) 10 % or 15% brine solution is normally used for the regeneration.

If the brine solution is passed from the bottom of the resin and service flow is from the top, then it is called as up flow softener. If the service and regeneration flows are from top to bottom, then it is called as Co flow softeners. The softeners are run up to the Hardness slip of 5 ppm as CaC03 in the treated water which is called as Industrial Zero hardness reduces hard water build up and makes tubs, showers and sinks clean.

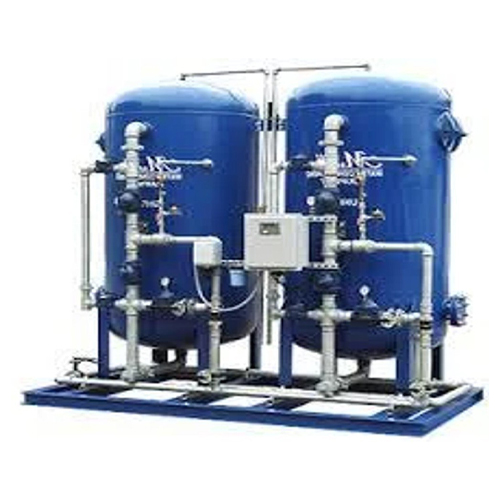

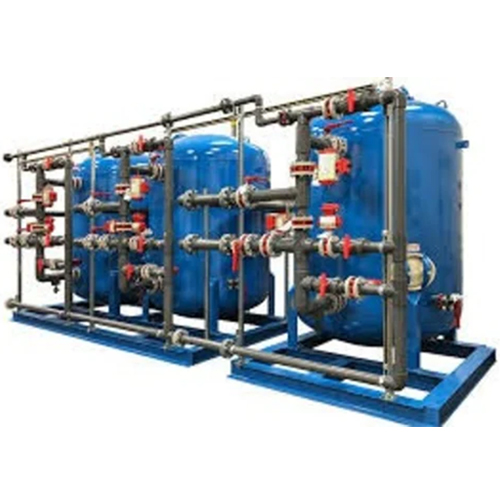

We are leading supplier of wide range of Softener Plants. Softener plants will remove hardness from water. These plants will prevent boiler, cooling tower & chiller performance problems by preventing scale formation. Softener Plants are available in a wide range of materials like FRP / SS / Mild Steel Epoxy Paint / MS with FRP Coating / MS with Rubber Lined. Softener Plants are available in 2 m3/h to 50m3/h flow rate.

Note: Higher flow rates can also be custom built as per customer requirement.
